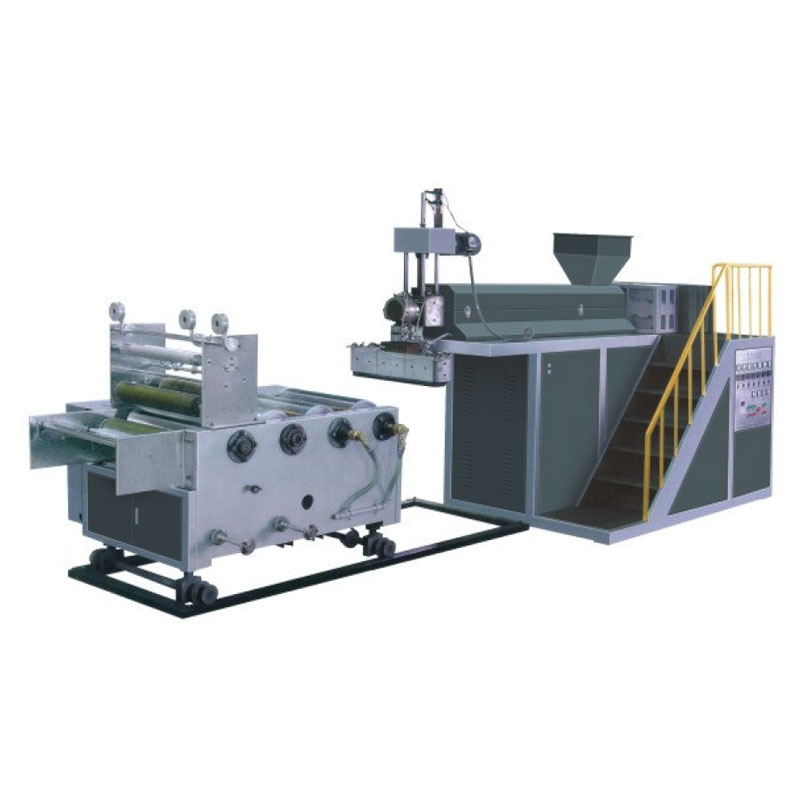

Extruding & Film Casting Machine (Stretch Film Making Machine)

Extruding & Film Casting Machine (Stretch Film Making Machine)

This unit is suitable for producing low-density polyethylene (LDPE) or linear low-density polyethylene (LLDPE) plastic cast film. The machine adopts single-screw extrusion, and the film produced can achieve the effect of sticking on both sides; if twin-screw is used, the raw materials of the two feed hoppers use different formulas, and the film produced can achieve the effect of sticking on one side, which is widely used in the packaging of building materials, hardware accessories, etc.

PDF Download Request a Quote
Technical Parameters:
Model XYSJ-60
Screw Diameter Φ55mm
Screw Ratio 30:1(L/D)
Film Width 200-550mm
Thickness 0.015-0.03mm
Output 30kg/h
PowerofMain Motor 15kw
HeatingPower 30kw
Power 380/3/4/50 (Volt/Ph/Line/Hz)
WeightofMachine 3000kg
Overall Dimension (L×W×H) 6.0×1.5×2.5m
