Automatic High Speed Double-color T-shirt Bag Making Machine

Automatic High Speed Double-color T-shirt Bag Making Machine

The machine uses material such as HDPEand LDPE film to make colored and uncolored plastic T-shirt bag. lt is equipped with PLC and touch screen to control the bag length automatically, getting the unwinding, sealing. cutting, punching and conveying done at one time, lt has high automation and good economic benefits.

PDF Download Request a Quote
Technical Parameters Production Samples
Technical Parameters Production Samples
Technical Parameters:

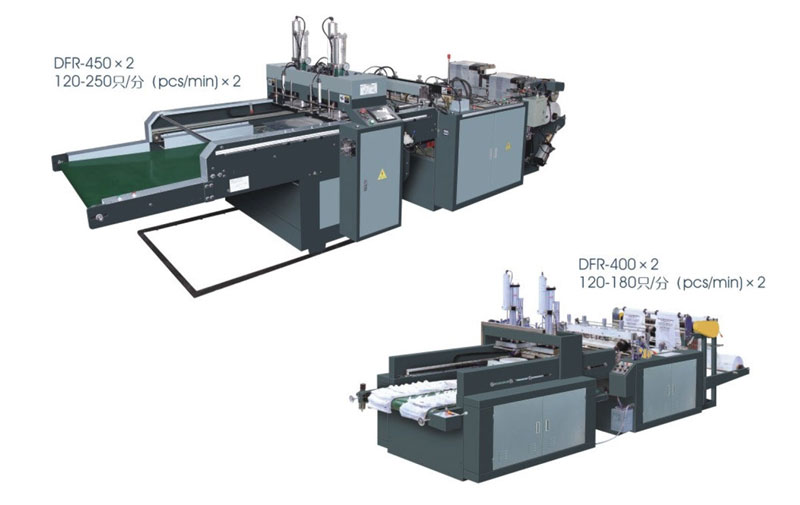

Model DFR-400×2 dual channel DFR-450×2 dual channel
Bag Width 200-320mm 200-400mm
Bag Length 350-600mm 350-600mm
Bag Thickness 0.015-0.035mm 0.01-0.05mm
Speed 120-180 (pcs/min)×2 120-250 (pcs/min)x2
Air Pressure 5kg/cm² 8.5kg/cm²
Total Power 5.5kw 9.5kw
Weight of Machine 1500kg 2200kg
Overall Dimension (L×W×H) 6.0×1.4×1.6m 6.5×1.8×1.7m

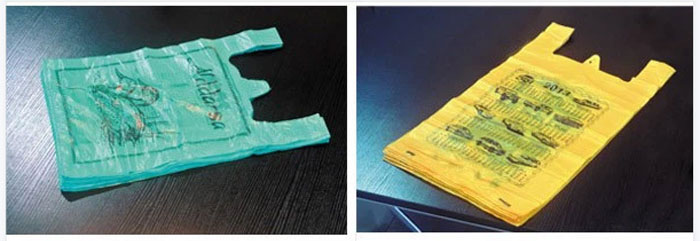

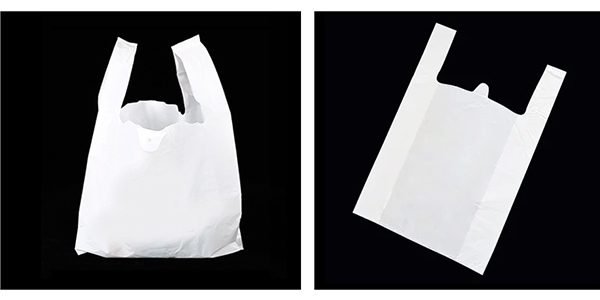

Production Samples:

Trust your plastic packaging equipment to the industry's leading manufacturer
Our equipment utilizes high quality materials, advanced technology and strict quality control measures.
And we provide comprehensive support and assistance to our customers, not simply selling products, but also providing cutting-edge technology and services.

High precision machining center

Expert assembly and design team

Machines can be customized

Machine accessories available

Installation and maintenance

Remote troubleshooting

24-hour online consultation
