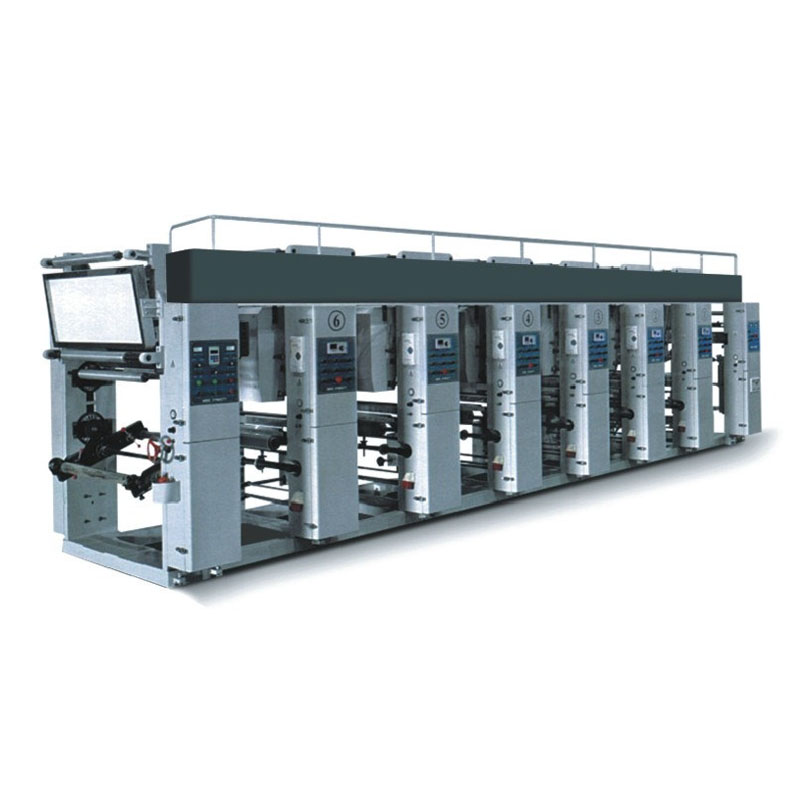

The machine is equipped with latest lmproved gear box, 360 non-stopping registration device; pneumatic doctoi blade for transverse reciprocating motion; Closed type oven, automatic constant temperature system;
Side and up double drying oven system; Unwinding and feeding equipped with auto-tension controller and magnetic powder brack: Rewinding and output adopt magnetic powder clutch to control the tension; Turret type unwinding and rewinding mechanism, receiving and replacing material without stopping; lnflatable air shaft for unwinding rewinding material loading: Printing linear speed and meter indication; Pneumatic printing impress roller and raction lmpress roler; Pneumatic nip roler for in unwindina and rewinding: Main motor;electromaanetic speed regulation motor.
| Model | XYAY-D6600 | XYAY-D6800 | XYAY-D61000 |
| Effective Printing Width | 600mm | 800mm | 1000mm |
| Max.Width of Web | 620mm | 820mm | 1020mm |
| Max.Printing Speed | 80m/min | 80m/min | 80m/min |
| Max.Mechanical Speed | 100m/min | 100m/min | 100m/min |
| Max.Diameter of Unwind/Rewind | Φ600mm | Φ600mm | Φ600mm |
| Inside Diameter of Roilcore | Φ76mm | Φ76mm | Φ76mm |
| Diameter of Printing Cylinder | Φ120-Φ320mm | Φ120-Φ320mm | Φ120-Φ320mm |
| Accuracy of Registration | +0.2mm | +0.2mm | +0.2mm |
| Tension Control Range | 3-25kg/Full Width | 3-25kg/Full Width | 3-25kg/Full Width |
| Heating Powerof Oven | 28.8kw | 36kw | 43.2kw |
| Total Power | 38.6kw | 47.5kw | 56.6kw |
| Weight of Machine | 8500kg | 9500kg | 10500kg |
| Overall Dimension (L×W×H) | 9.3×2.3×2.3m | 9.3×2.5×2.3m | 9.3×2.7×2.3m |
